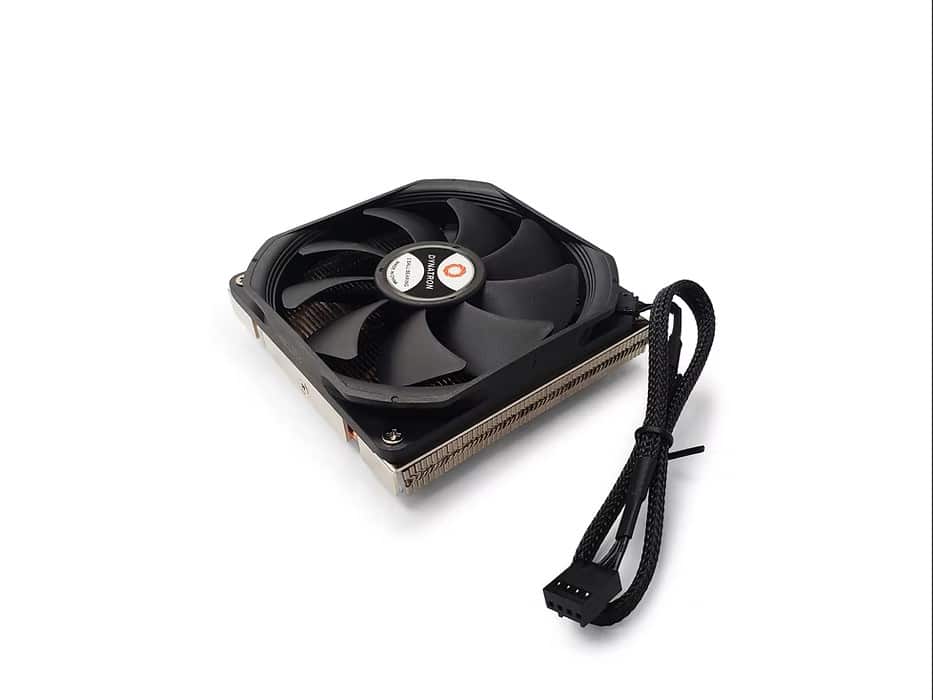

FAN Dynatron U10 1.5U AM4 AM5 1851 1700 115W
| CPU Support | Intel/AMD |
| CPU Socket | Intel LGA 1700/1200/115X
AMD AM5/AM4 |
| Screw Type | #6-32/M3 |
| Installation Torque | 6-10 in-lb/5-7 in-lb |
| Solution | 1.5U & Up |
| Dimensions | 93.5 x 95.0 x 30.0 mm |
| Weight | 348g (Fan + Heatsink) |
| Material | Copper Base & Aluminum Fins with Heat Pipe Embedded |
| Fan Dimension | 92.0 x 92.0 x 12.0 mm |
| Speed | At Duty Cycle 0~20%: 800 ± 200 RPM
At Duty Cycle 50%: 1900 ± 10% RPM At Duty Cycle 100%: 3200 RPM |
| Bearing | Double Ball |
| Rated Voltage | 12V |
| Power | At Duty Cycle 0~20%: 0.2 W
At Duty Cycle 50%: 0.5 W At Duty Cycle 100%: 1.6 W |
| Air Flow | At Duty Cycle 0~20%: 9.88 CFM
At Duty Cycle 50%: 21.38 CFM At Duty Cycle 100%: 35.78 CFM |
| Noise Level | At Duty Cycle 0~20%: 22.3 dBA
At Duty Cycle 50%: 26.1 dBA At Duty Cycle 100%: 36.2 dBA |
| Air Pressure | At Duty Cycle 0~20%: 0.28 mm-H2O
At Duty Cycle 50%: 1.22 mm-H2O At Duty Cycle 100%: 3.21 mm-H2O |
| Lead Wire Pin Out | Pin#1- Black(-)
Pin#2- Black (+) Pin#3- Black (Tachometer/ Signal Output) Pin#4- Black (PWM) |
| Thermal Grease | Shin-Etsu 7762 or Equivalent |
| Life – Continuous operating
under normal temperature (40 °C or 104 °F) |
70,000 Hours |
