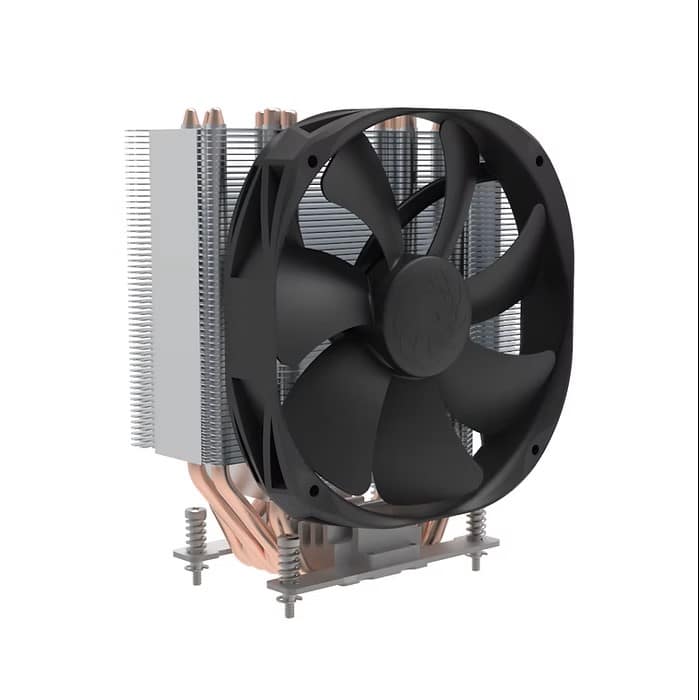

FAN Dynatron U14 AMD AM4 AM5 LGA INTEL 1851 1700
| CPU Support | Intel/AMD |
| CPU Socket | Intel LGA 1851/1700
AMD AM5/AM4 |
| Screw Type | #6-32/M3 |
| Installation Torque | 6-10 in-lb/5-7 in-lb |
| Solution | Tower PC & Workstation |
| Dimensions | 77.8 x 147 x 165 mm |
| Weight | 600g |
| Material | Aluminum Stacked-fin with Heat Pipes directly contact CPU |
| Fan Dimension | 140 x 140 x 25.8 mm |
| Speed | At Duty Cycle 0~20%: 700 ± 200 RPM
At Duty Cycle 50%: 1000 ± 10% RPM At Duty Cycle 100%: 1800 RPM |
| Bearing | Double Ball |
| Rated Voltage | 12V |
| Power | At Duty Cycle 0~20%: 0.46 W
At Duty Cycle 50%: 0.65 W At Duty Cycle 100%: 2.08 W |
| Air Flow | At Duty Cycle 0~20%: 41.67 CFM
At Duty Cycle 50%: 56.41 CFM At Duty Cycle 100%: 96.55 CFM |
| Noise Level | At Duty Cycle 0~20%: 21.9 dBA
At Duty Cycle 50%: 25.4 dBA At Duty Cycle 100%: 32.7 dBA |
| Air Pressure | At Duty Cycle 0~20%: 0.6 mm-H2O
At Duty Cycle 50%: 1.0 mm-H2O At Duty Cycle 100%: 2.5 mm-H2O |
| Lead Wire Pin Out | Pin#1- Black(-)
Pin#2- Black (+) Pin#3- Black (Tachometer/ Signal Output) Pin#4- Black (PWM) |
| Thermal Grease | Shin-Etsu X23-8079-2 Pre-Printed |
| Life – Continuous operating
under normal temperature (40 °C or 104 °F) |
70,000 Hours |
